When attempting to simulate AC components like AC Panels, long home-runs, and transformers you may want to select an inverter with a set output voltage. This quick how-to will show you how to pull up an inverter and quickly identify its output voltage.
- Open the Inverter library here: https://www.helioscope.com/library/components
- Search for your inverter in the library by entering the manufacturer and device name. If you're having trouble getting the results you're looking for, try searching with less information, by shortening the device name, for example.

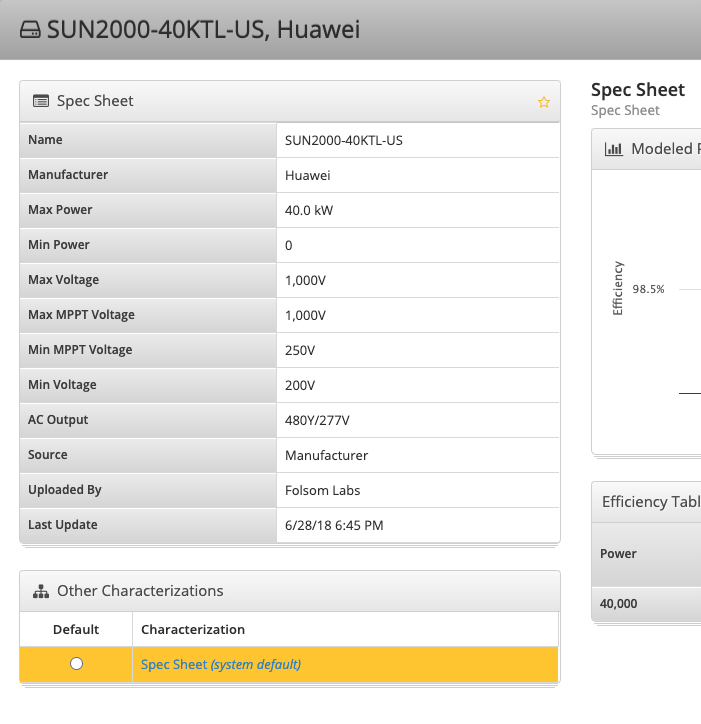

- Once you see the desired inverters in the search list, click on the inverter to pull up its characteristics. If the inverter has a configured output voltage, it will be listed under the Min Voltage as in the picture below.
