HelioScope provides the capability to automate common design styles through Project Profiles. As an administrator for the account or project, there is the option to designate these Profiles as a user's default or to select them when initiating a new Project.
When a Project Profile is modified within an existing Project, the existing Designs and Condition Sets remain unaffected. However, any new Designs or Condition Sets that are created within that existing Project will incorporate the inputs specified in the new Project Profile that has been selected.
The video and article provided below offer detailed instructions on how to create and utilize Project Profiles.
Video
Step by Step Instructions
Keep in mind that Profiles in HelioScope are implemented at the Project level. However, it is important to note that each Project Profile consists of a mechanical, electrical, and Condition Set profile. These more detailed Profiles outline the specific assumptions utilized in new HelioScope Designs and Condition Sets.
View and Edit Profiles:
- Click your name in the top-right corner and select “My Account”
- Click the “Profiles” tab under the account settings

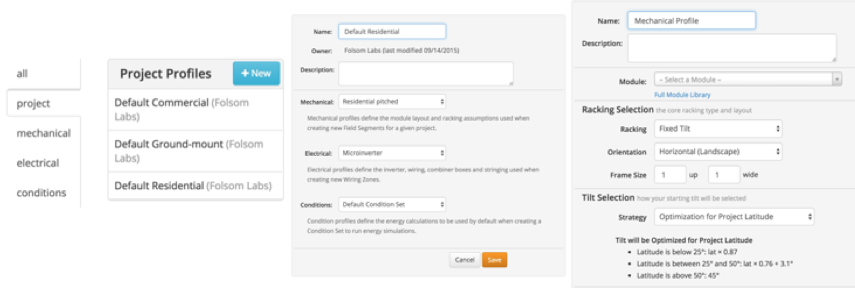

- Under the Profiles tab you will see 5 sections: All, Project, Mechanical, Electrical, and Conditions. You will create a Project profile, which is made up of one Mechanical, one Electrical and one Condition profile. Each of these represent the default assumptions HelioScope will use in a new Design or Condition Set.
- Create a custom Mechanical profile by selecting the Mechanical tab and clicking the “+New” button.
- Within the Mechanical profile, set all the settings you would find in the Field Segment section of the HelioScope Designer.
- After saving your Mechanical profile you can move on to create Electrical and Condition profiles.
- Once you have created the individual profiles want, assign them to a Project Profile by selecting the appropriate configurations in each drop down. Note: this is the most commonly-missed step when creating new Profiles.
Using Profiles

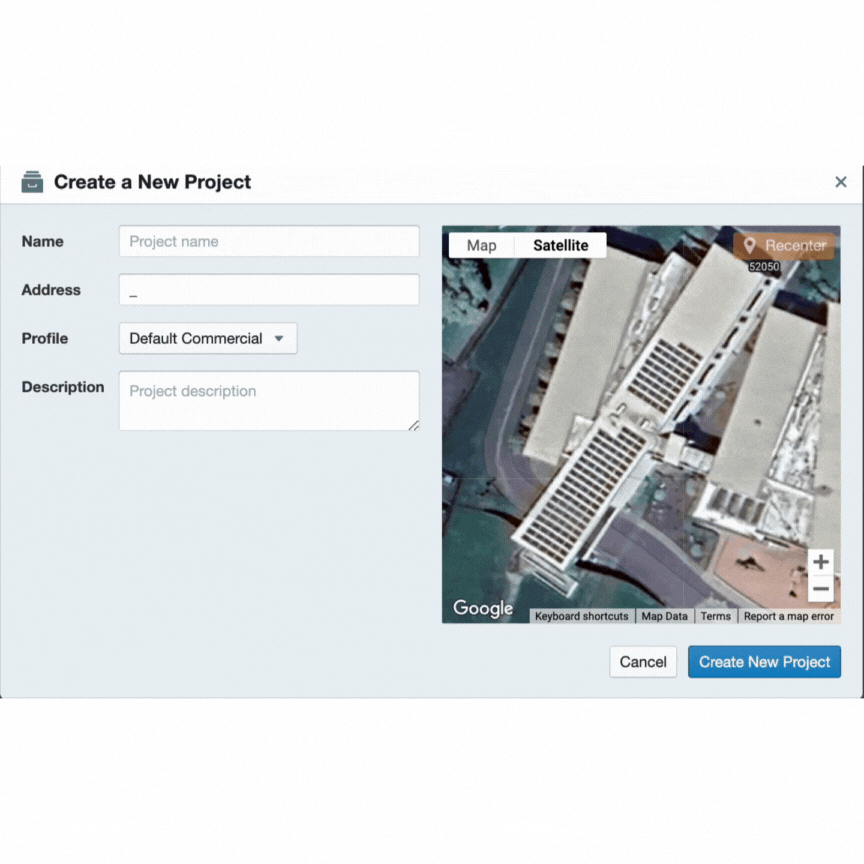

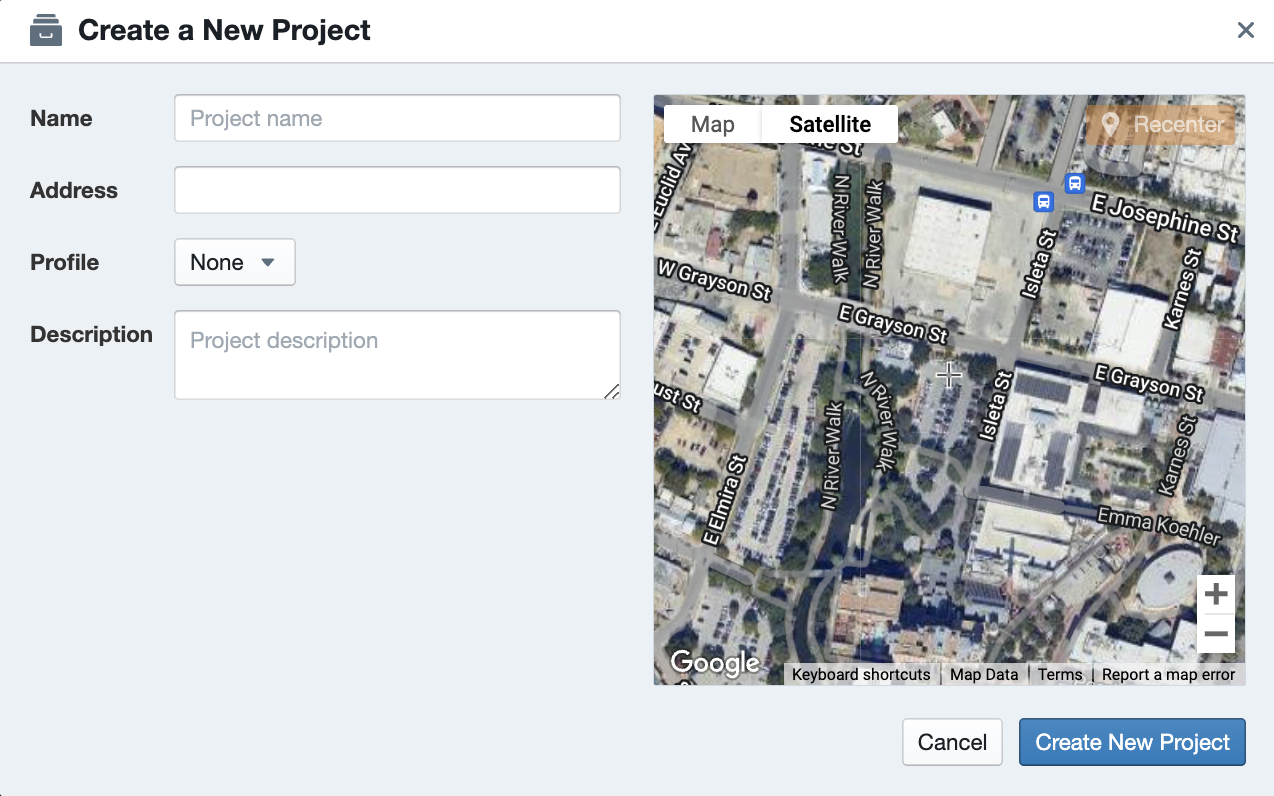

- A Profile can be applied at the Project level, selected when the Project is created.
- Profiles can also be changed under the Project Edit menu (click the “Edit” button at the top of the Project Overview table):
- Default values for new Designs and Condition Sets in the Project will be automatically populated based on the parameters of the Project Profile.
