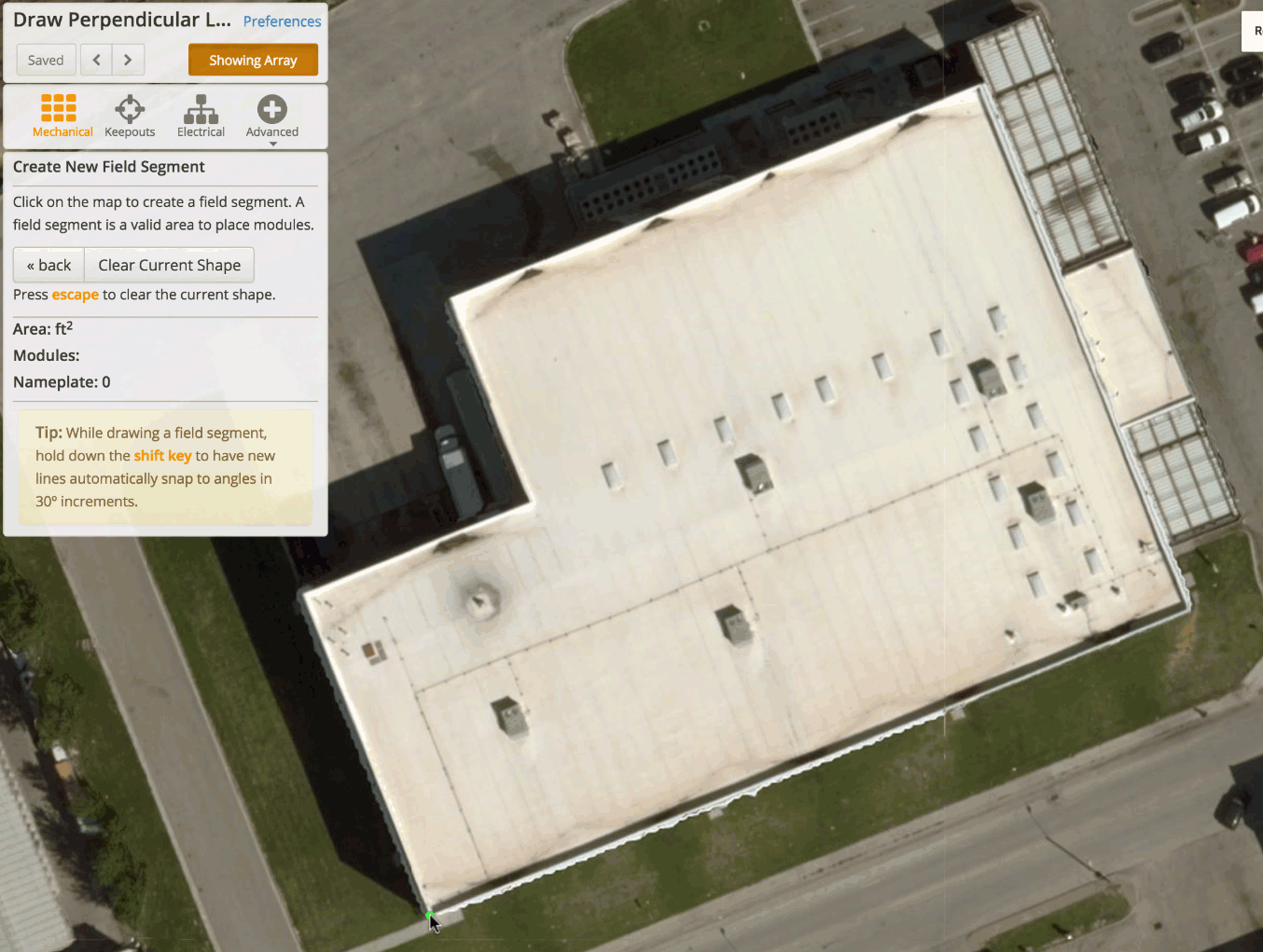

To draw squares or rectangles in the Designer, hold down the Shift key while drawing a Field Segment or Keepout. The line will be perpendicular (or a multiple of 45 degrees) to the previous line.
Draw perpendicular lines
To draw squares or rectangles in the Designer, hold down the Shift key while drawing a Field Segment or Keepout. The line will be perpendicular (or a multiple of 45 degrees) to the previous line.
