A Condition Set describes the environment around the modeled solar array. A Condition Set includes several assumptions around the specific weather conditions, shading patterns, and soiling losses. In many cases, the default values are appropriate, though they can always be modified.
Weather:

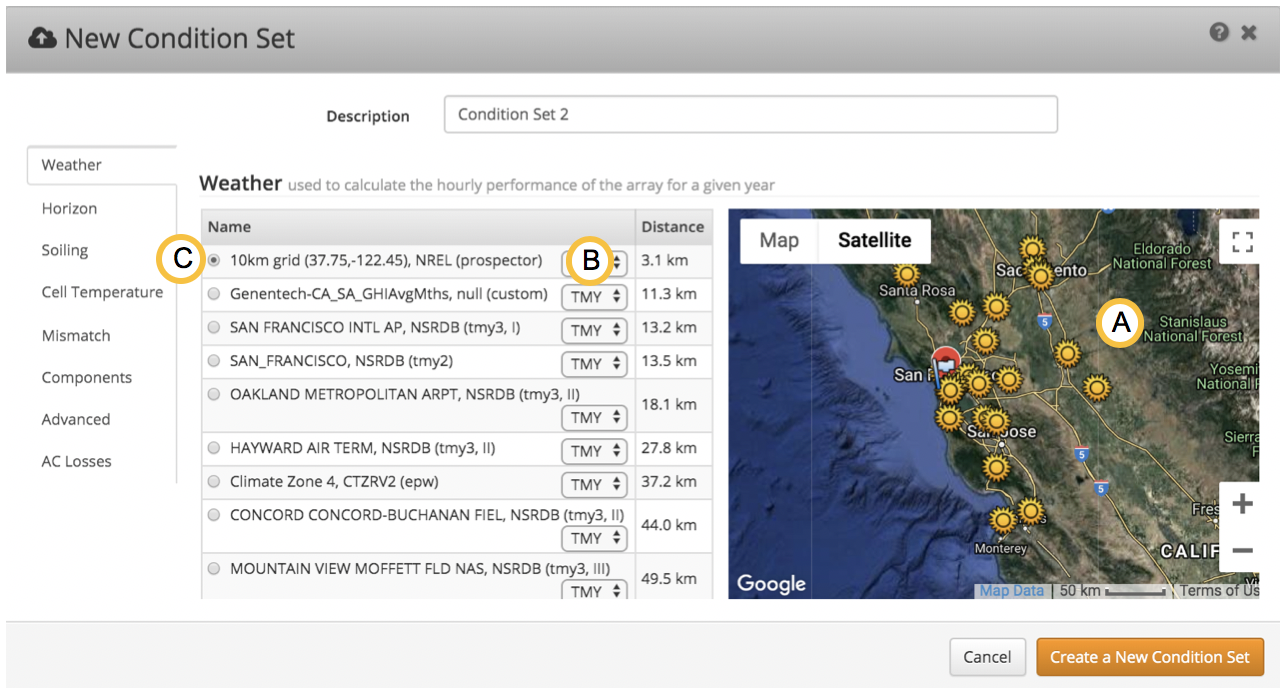

A. Nearby weather stations are shown on a map around the project location
B. Weather stations are sorted by distance from the Project. The source of each file (TMY3, EPW, Prospector) is shown in parenthesis
C. Use the radio button to select the desired weather file. The default choice will be the closest weather file that can be modified.
Horizon:
If the Project has shading, choose the relevant Horizon Profile to be included in the Condition Set. Note: Horizon Profiles must first be uploaded before they can be added to a Condition Set.

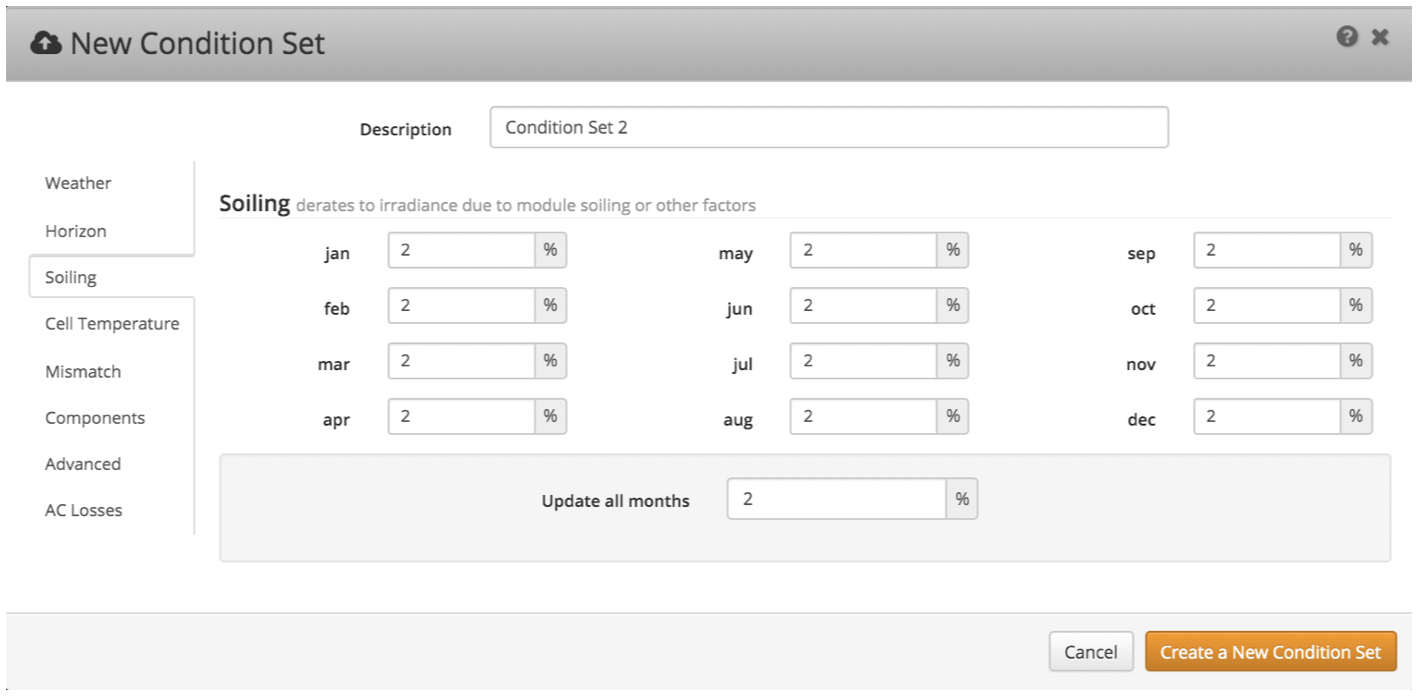

Soiling losses are reductions in the irradiance that reaches the module, taken at the surface of the module. Confirm the assumptions by adding your value to the 'update all months' section. Or modify the monthly soiling factors, which will pull the total average of your values to be included in the assumptions.
Cell temperature model:

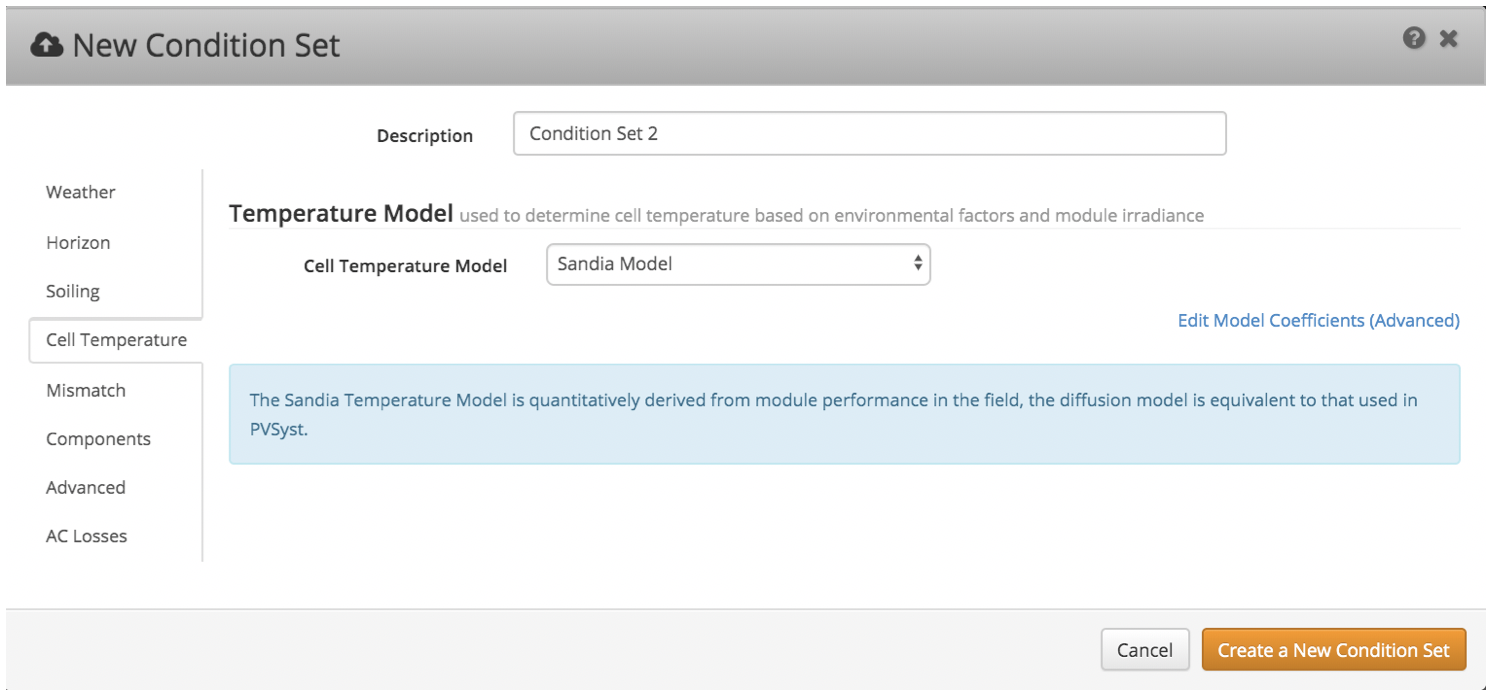

HelioScope supports both the Sandia Labs Temperature Model including, the Linear Diffusion model (used by PVsyst). For, either model, Click “Edit Model Coefficients” to view and modify the temperature coefficients.
Mismatch:
There are three drivers of mismatch, each of which creates a random distribution between modules in the array:
A. Difference in POA irradiance (normally distributed)
B. Temperature differences (uniform distribution)
C. Module manufacturing tolerance (uniform distribution). Note that this parameter has two inputs, to account for positive-tolerance module binning.
Components:

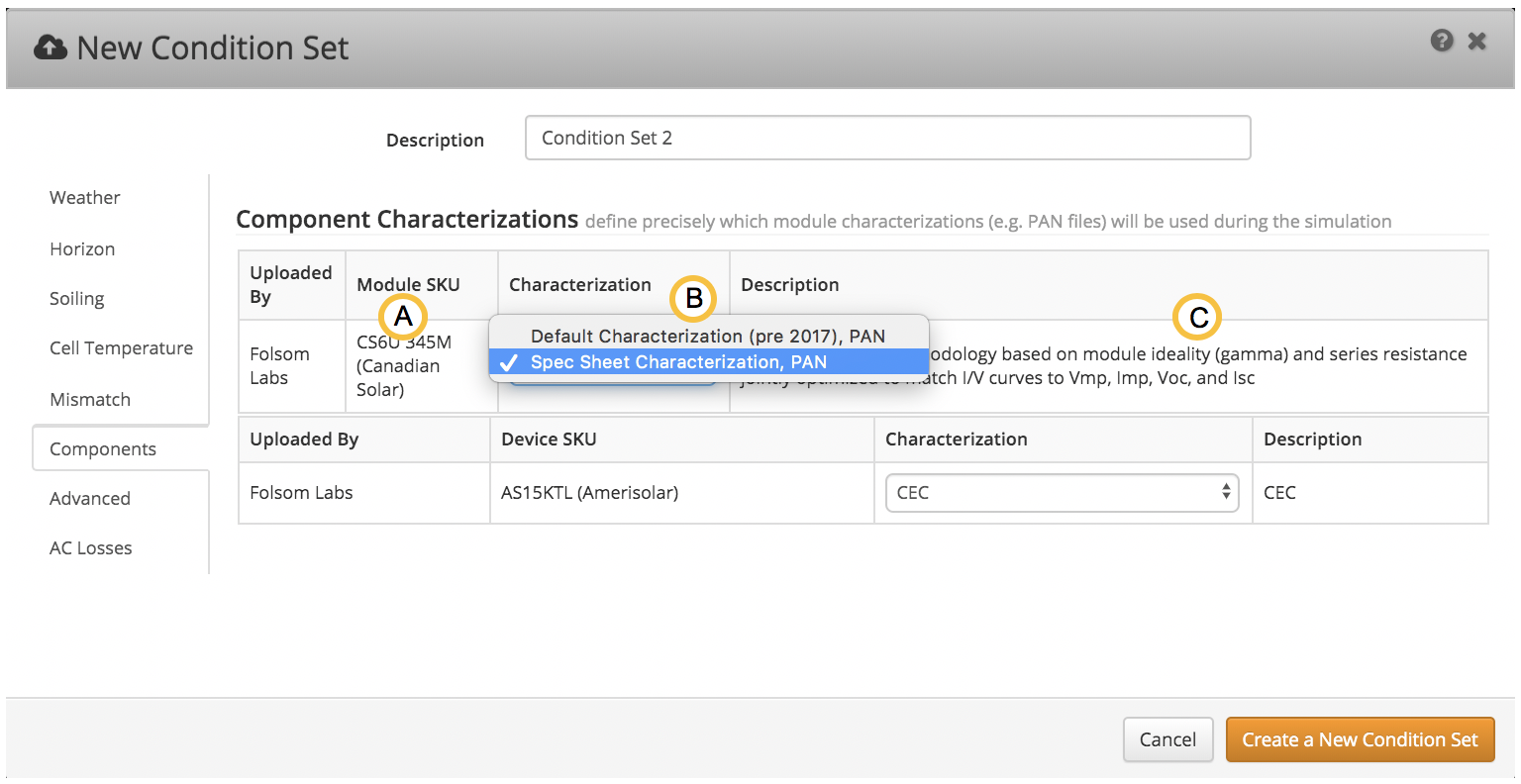

The Design defines the specific module SKU used, but if a module has multiple PAN files, these are configured as part of the Condition Set. You can manage the characterizations used for each module or inverter from this page.
A. The window will show the full list of components used in any design in the existing project.
B. If a custom PAN file has been loaded or multiple PAN files are available, they are configurable via the drop-down menu.
C. Where possible, the source of the PAN file is indicated.
Advanced:

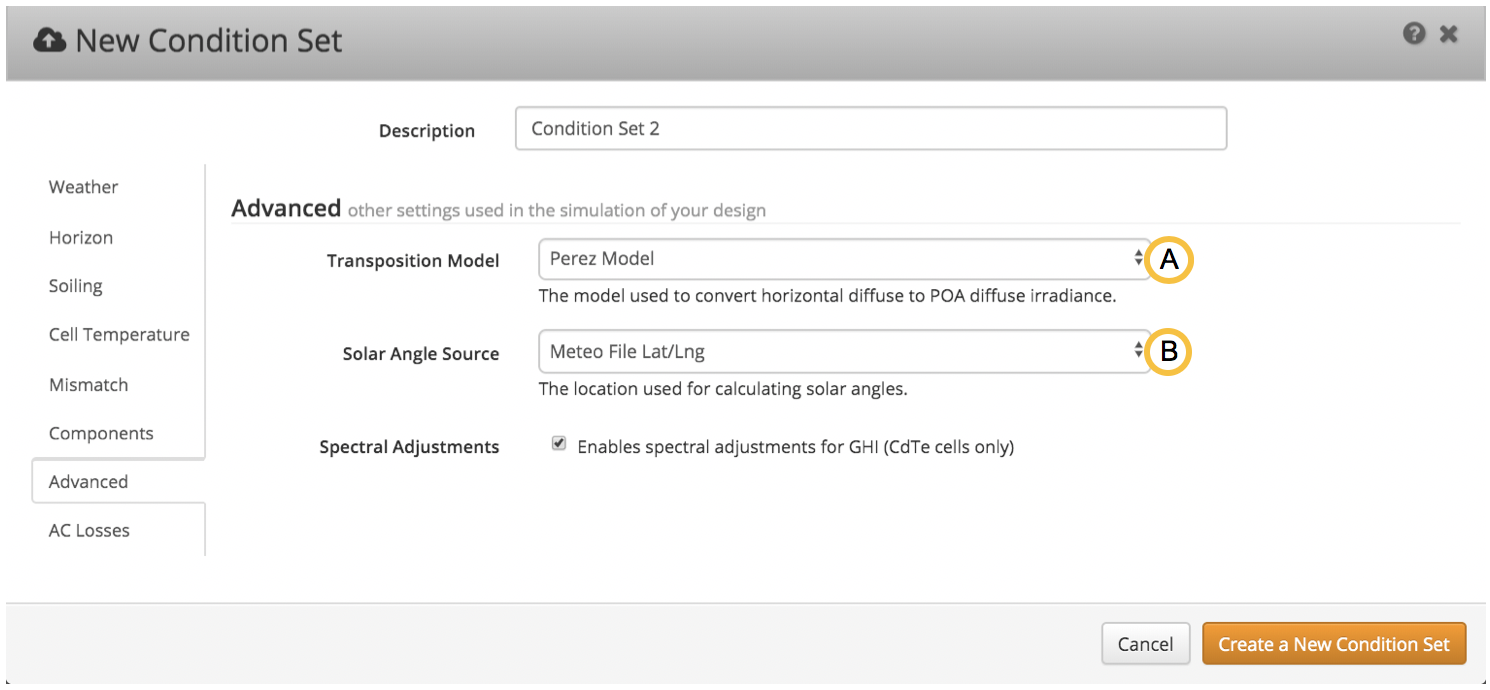

A. Choose the transposition model (the mathematics used to convert diffuse light to plane-of-array irradiance). Perez can generally be used with high-quality weather files, while the Hay model is better used with lower-quality weather files.
B. Choose the location used for calculating solar angles (either the location of the weather file, or the project latitude and longitude).
AC Losses:
If a detailed AC System is not defined in the Electrical Design, HelioScope will apply a Derate Factor to compensate for AC System losses. The Derate Factor can be modified in the Condition Set.
Note: when using micro-inverters, AC conductors are automatically modeled and their losses are calculated.
