The Metrics Bar available in HelioScope V2 allows you to view project-related information. The metrics that can be viewed are:
Nameplate: DC Nameplate in kW
Specific Yield: Yield (kWh/kWp. Total Energy Generated ÷ System DC Nameplate
Grid Power: The total energy generated during the simulation in GWh.
Offset Energy: Annual Solar Production ÷ Annual Energy Consumption × 100
Offset Bill: Annual Bill Savings ÷ Pre-Solar Annual Bill × 100
Payback Period: Length of time in years the investment takes to break even, meaning it generates enough net cash to recover the initial cost

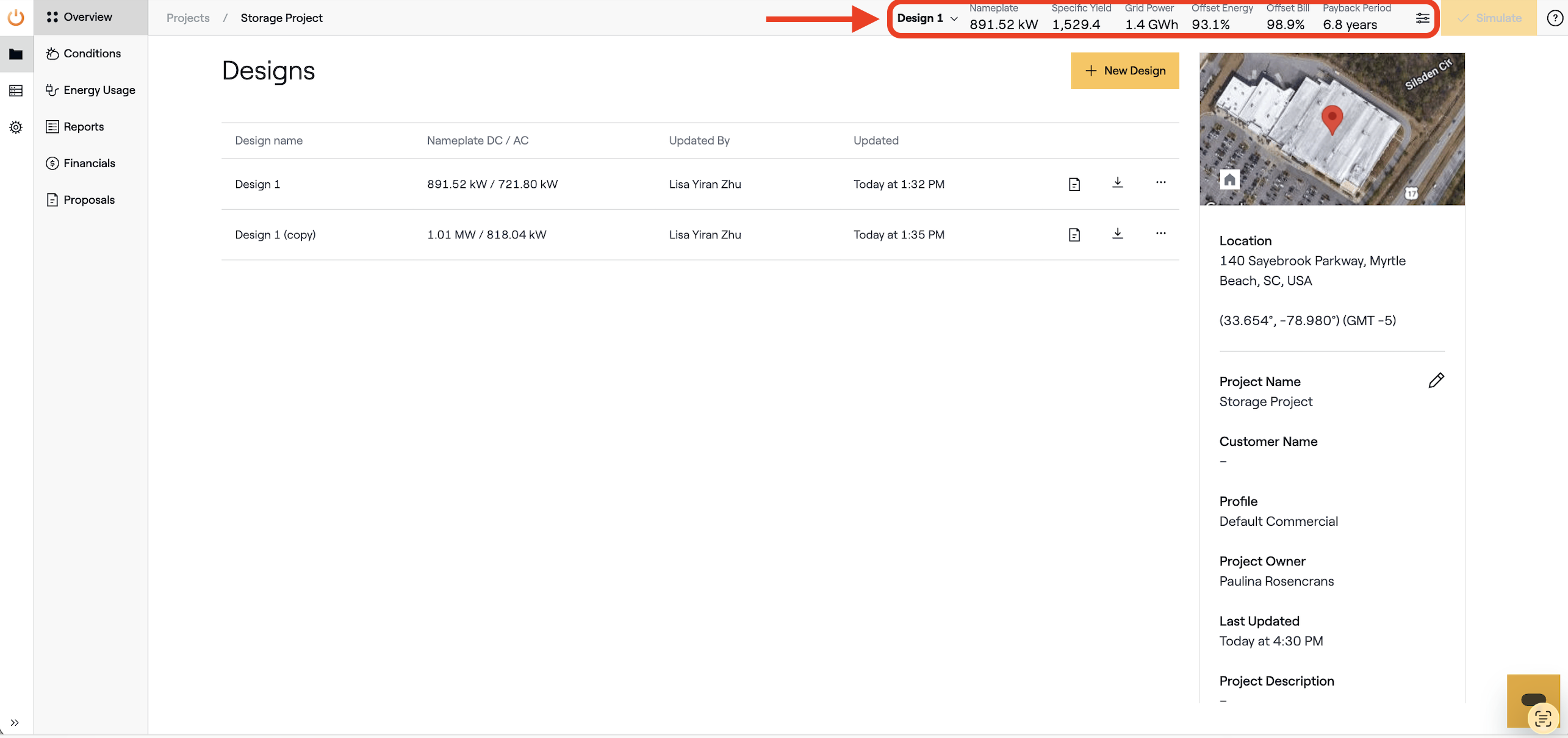

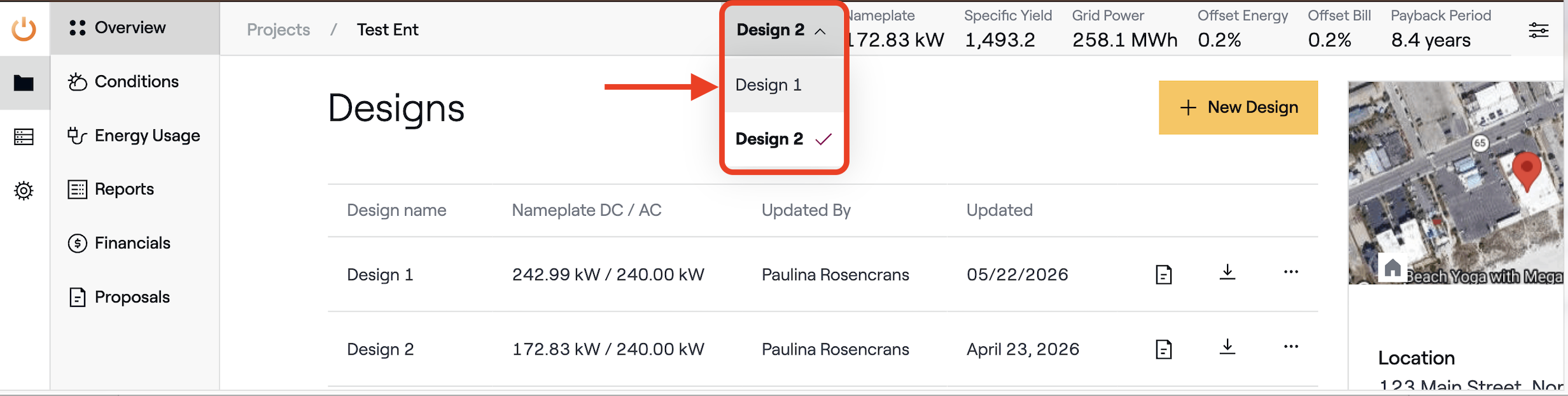

You can access the Metrics Bar in the Overview page

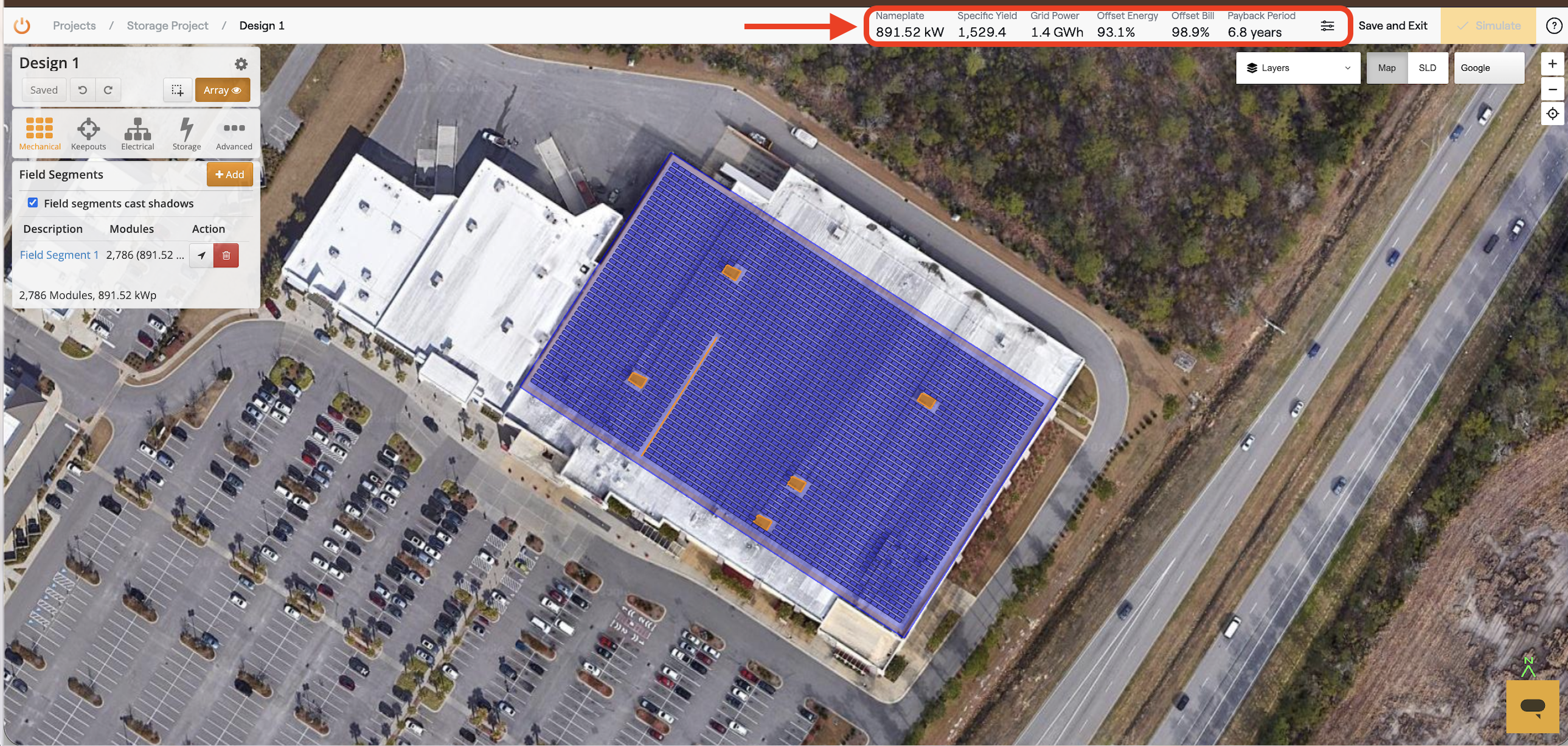

It is also available inside the Designer

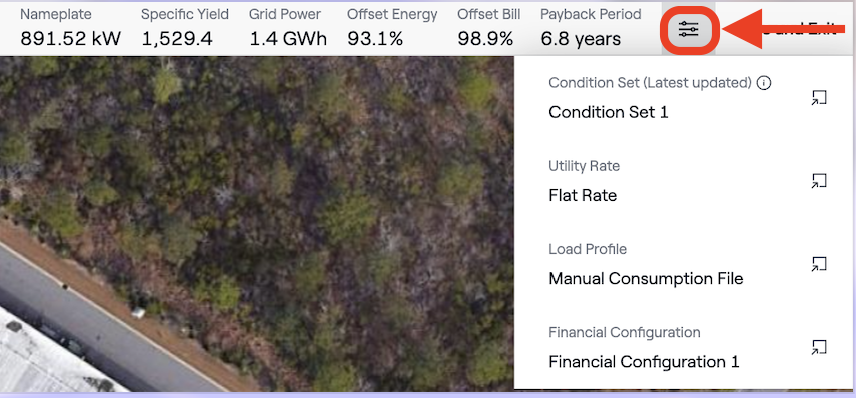

To see the source of the numbers displayed on the Metrics Bar, you can click on the Metrics Inputs icon.
